Project Description

SMART FRAME IP24

Flush-mounted infrared heater, splash-water proof — for terraces and all outdoor areas!

Our popu­lar SMART FRAME model is now sui­ta­ble for out­door use. Cer­ti­fied with IP24 (splash-water pro­of) and a new, cor­ri­si­on resistanr alu­mi­num frame, the reces­sed hea­ter can be seam­less­ly instal­led in cei­lings or walls. A simp­le click sys­tem ensu­res uncom­pli­ca­ted instal­la­ti­on. The infra­red hea­ter is avail­ab­le in a white or sil­ver alu­mi­num frame in eit­her 1,500 or 2,000 watts. The LOW GLARE tech­no­lo­gy signi­fi­cant­ly redu­ces the emis­si­on of red ligh for a plea­sant ambi­ence.

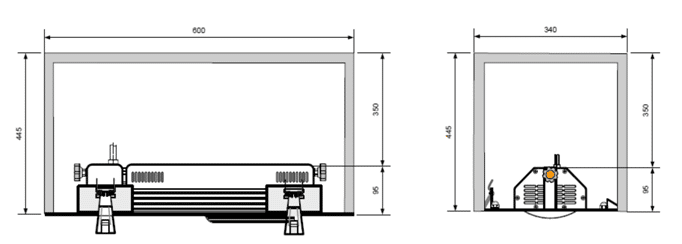

PLEASE NOTE An instal­la­ti­on depth of 450mm is requi­red!

Sales Support
Sales Sup­port+49 6173 324 24 20
ORDER ONLINE!
ORDER ONLINE!

Model overview  SMART FRAME IP24

CODEOUTPUTCOLOURDIMENSIONS
(WxHxD in cm)
WEIGHTCable Length/ Con­nec­tionHea­ta­ble area/m²
BHSF1524-21 x
1,50 kW
White60,5 x 32,5 x 9,53,4 kg1,90 m 3-wire
1,5 mm², Schu­ko plug
1/N/PE ~ 230 V 50 Hz
about 12 – 13 qm
BHSF1524-31 x
1,50 kW
Sil­ver60,5 x 32,5 x 9,53,4 kg1,90 m 3-wire
1,5 mm², Schu­ko plug
1/N/PE ~ 230 V 50 Hz
about 12 – 13 qm
BHSF2024-21 x
2,0 kW
White60,5 x 32,5 x 9,53,4 kg1,90 m 3-wire
1,5 mm², Schu­ko plug
1/N/PE ~ 230 V 50 Hz
about 14 – 16 qm
BHSF2024-31 x
2,0 kW
Sil­ver60,5 x 32,5 x 9,53,4 kg1,90 m 3-wire
1,5 mm², Schu­ko plug
1/N/PE ~ 230 V 50 Hz
about 14 – 16 qm
A new quick-assem­bly sys­tem ensu­res simp­le for cei­ling instal­la­ti­on. The deli­very con­tent inclu­des an assem­bly kit with inst­ruc­tions. The hea­ter is equip­ped with a 1.9 m cable.

Wall and cei­ling instal­la­ti­on ver­ti­cal or hori­zon­tal pos­si­ble.
For more instal­la­ti­on infor­ma­ti­on click here.
