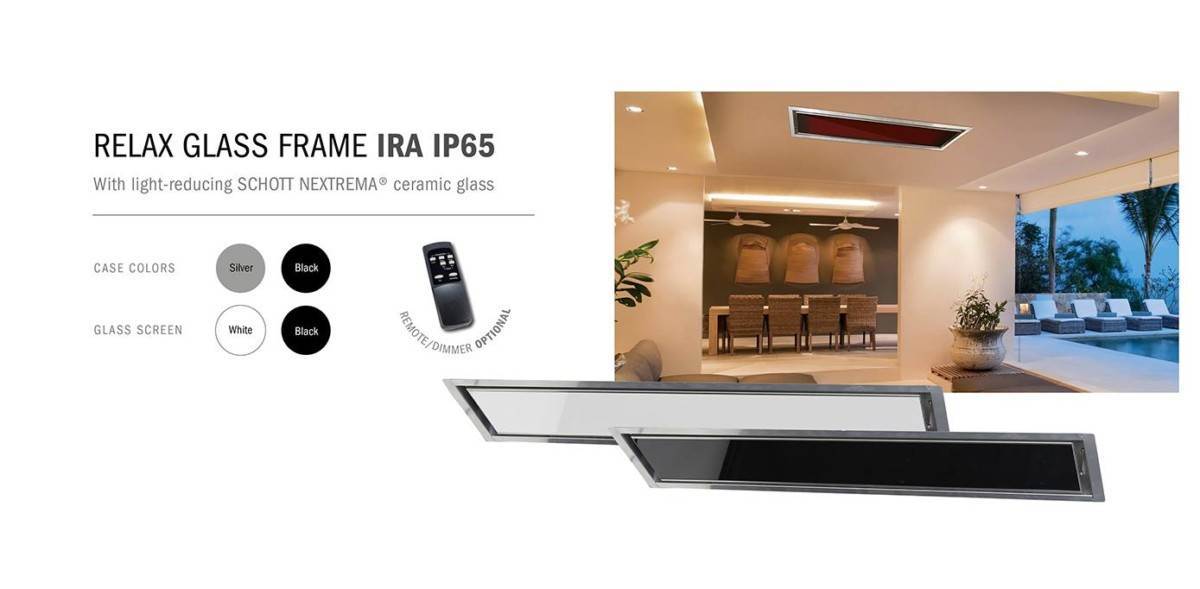

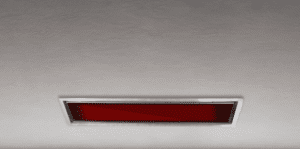

RELAX GLASS FRAME IRA IP65 — flush-mounted infrared heater with or without dimmer and remote

The first water­pro­of infra­red short-wave hea­ter (IRA) from BURDA PERFECTCLIME® for flush-moun­ting with white or black cer­a­mic-glass SCHOTT NEXTREMA® in 1200/1500 or 1800 watts. RELAX GLASS FRAME IRA IP65 deli­vers instant heat through short­wave radia­ti­on, is high­ly light-redu­ced thanks to the high qua­li­ty cer­a­mic glass front and water­pro­of, IP65. The models are optio­nal­ly equip­ped with an ON / OFF switch * or inte­gra­ted dim­mer * with remo­te con­trol. The built-in models are enc­lo­sed in a stain­less steel frame and are embed­ded in the cei­ling with a clip sys­tem or screws.

*except of 1200watt models

Infrared shortwave for impressive instant heat

High quality ceramic-glass SCHOTT NEXTREMA®

Waterproof IP65

  • Per­for­mance: 1200,1500 and 1800watt

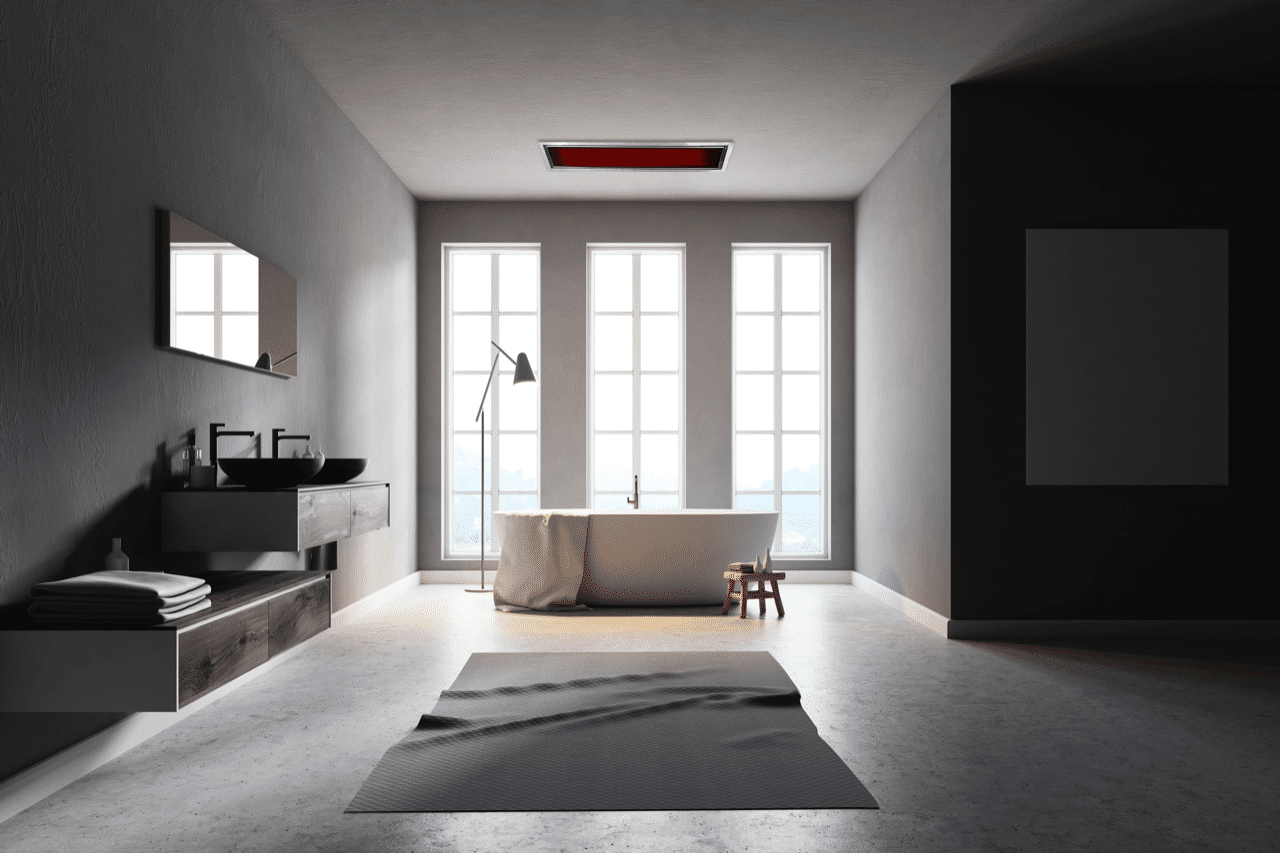

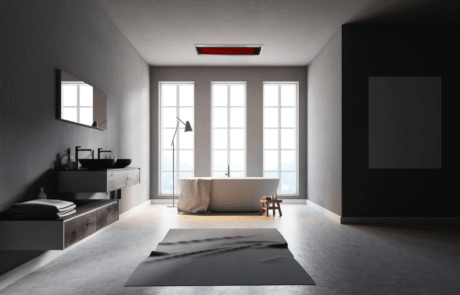

  • Use: Out­door hea­ting in pri­va­te, public, indus­tri­al or com­mer­ci­al sur­roun­dings. 1.200w devices are recom­men­ded for indoors.

  • Pro­tec­tion: IP65 water­pro­of

  • Con­nec­tion: Power con­nec­tion 230Volt. C16A slow blow fuse must be used up from 1,800watt!

  • Case material/color: Cor­ro­si­on-resis­tan­ce ano­di­zed alu­mi­num, black or sil­ver

    Glass screen material/color: SCHOTT NEXTREMA® cer­a­mic glass, black or white

    Frame material/color: stain­less steel/­cold-rol­led steel, silver/black

  • Fit­tings: ON/OFF switch (except of 1.200w models)

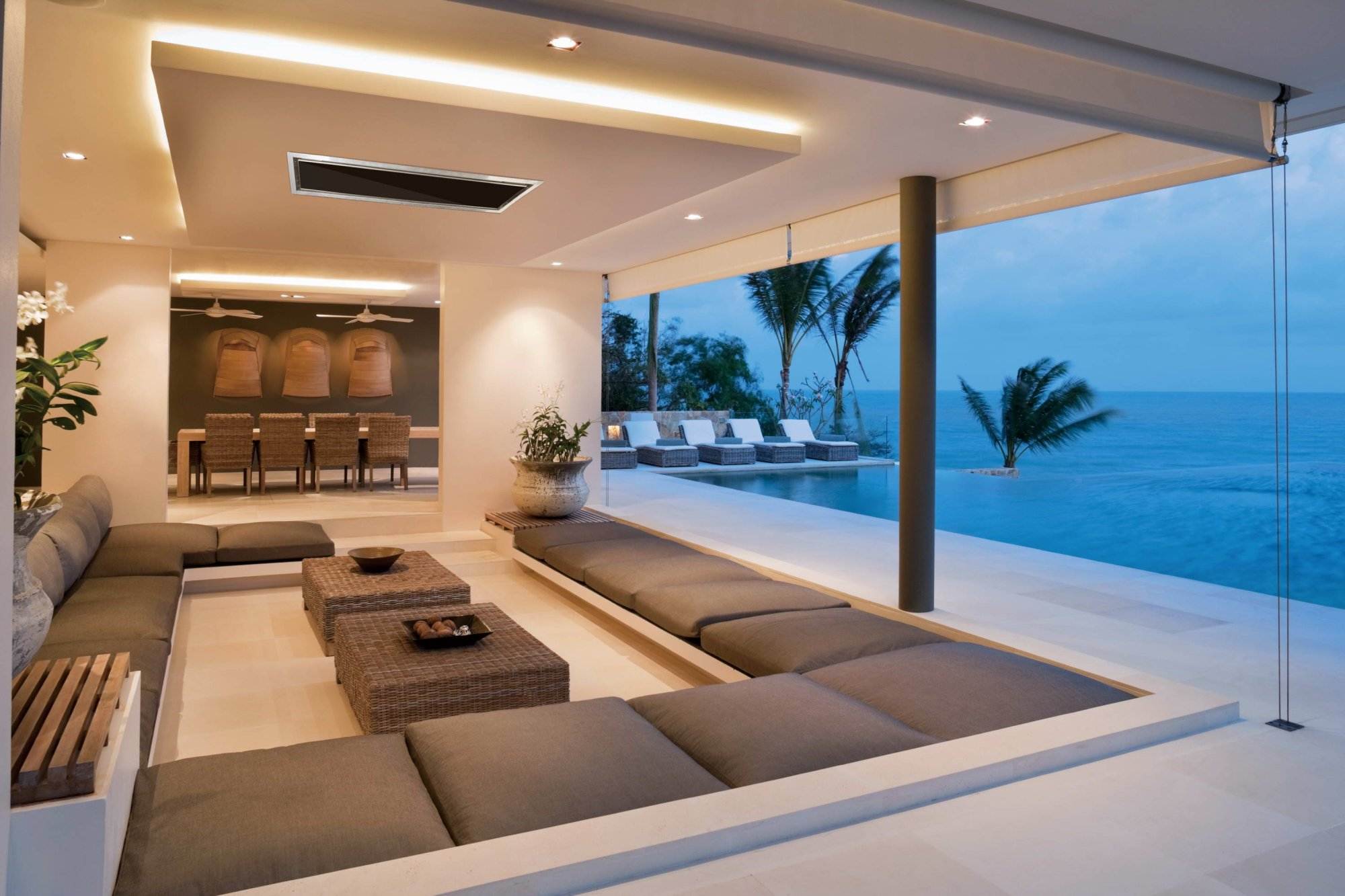

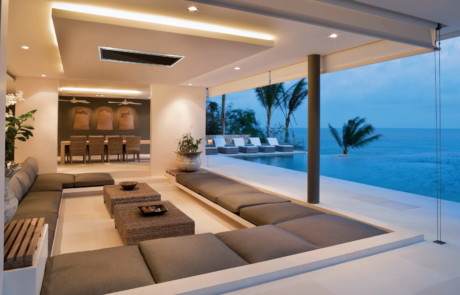

  • Assem­bly: flush-moun­ted cei­ling instal­la­ti­on

  • Gua­ran­tee:  2 years pri­va­te, 12 mon­ths busi­ness, 6 mon­ths indus­try.



Sales Support
Sales Sup­port+49 6173 324 24 20

Infrared Remote

Infrared remote control with timer

Frame

Made of steel in silver (stainless steel) or black (cold-rolled steel)

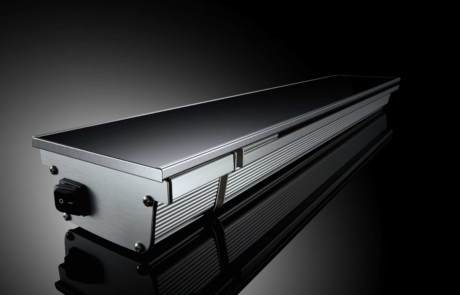

ON/OFF Switch

Easy operation with the integrated switch

RELAX GLASS FRAME IRA IP 65 with dimmer and remote

ARTICLE NO. /
CODE
OUTPUT COLOUR SIZE
(W x H x D)
WEIGHT CABLE CONNECTION
BRELGF1200R-3 1200 Silver/Black 60 x 21,4 x 12,3 5,5 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1200R-3W 1200 Silver/White 60 x 21,4 x 12,3 5,5 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1200R-1 1200 Black/Black 60 x 21,4 x 12,3 5,2 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500RD-3 1500 Silver/Black 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500RD-3W 1500 Silver/White 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500RD-1 1500 Black/Black 97,8 x 23,1 x 12,3 8,3 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800RD-3 1800 Silver/Black 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800RD-3W 1800 Silver/White 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800RD-1 1800 Black/Black 97,8 x 23,1 x 12,3 8,3 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz

RELAX GLASS FRAME IRA IP 65 without dimmer and remote

ARTICLE NO. /
CODE
OUTPUT COLOUR SIZE
(W x H x D)
WEIGHT CABLE CONNECTION
BRELGF1200-3 1200 Silver/Black 60 x 21,4 x 12,3 5,5 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1200-3W 1200 Silver/White 60 x 21,4 x 12,3 5,5 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1200-1 1200 Black/Black 60 x 21,4 x 12,3 5,2 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500-3 1500 Silver/Black 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500-3W 1500 Silver/White 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1500-1 1500 Black/Black 97,8 x 23,1 x 12,3 8,3 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800-3 1800 Silver/Black 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800-3W 1800 Silver/White 97,8 x 23,1 x 12,3 8,6 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz
BRELGF1800-1 1800 Black/Black 97,8 x 23,1 x 12,3 8,3 1,80m 3-wire 1,5 mm², Schu­ko plug L/N/PE, 230–240V~ 50Hz

Are you a dealer or potential reseller, or looking to fit out a major project?

Plea­se get in touch with our sales depart­ment direc­t­ly for pri­ce lists, terms and pro­ject advice. You can reach our sales sup­port team by pho­ne on +49 6173 324 24 20, or send us a mes­sa­ge using our con­tact form.
