SMART IP24
The compact LOW GLARE infrared radiant heater generation!
Compact, highly efficient heater in black, silver or white. The SMART IP24 heaters are very compact in size and suitable for all protected outdoor areas. The practical heaters can be used in working enviroments as well as on the terrace or balcony. The splash-proof devices guarantee optimal heat distribution by the large reflector – the smart way to heat!
The heater’s innovative LOW GLARE technology contributes to a warm and pleasant atmosphere. A special coating procedure of the heating tubes ensures that the light intensity of the infrared rays is significantly reduced – without compromising the heat output.
Configurations of the SMART IP24 heaters
available in different wattages
optionally with integrated Bluetooth interface
in standard colors silver, black and white
as a single heater or multi-beam device for large areas
as standing heater device SMART TOWER
also available as a single heater with integrated switch 50/100%
Code:
BHS1524/2024 / BTBHS2024
Code:
BHSS1524 / 2024
Code:
BHS3024/4024/6024
Code:
BHST3024 / BTBHST3024
Compact single infrared heaters in various colors for instant heat in protected outdoor areas.
Installation on walls, under ceilings or flush-mountet SMART FRAME
Also available with BLUETOOTH for wireless heater control with your smartphone.

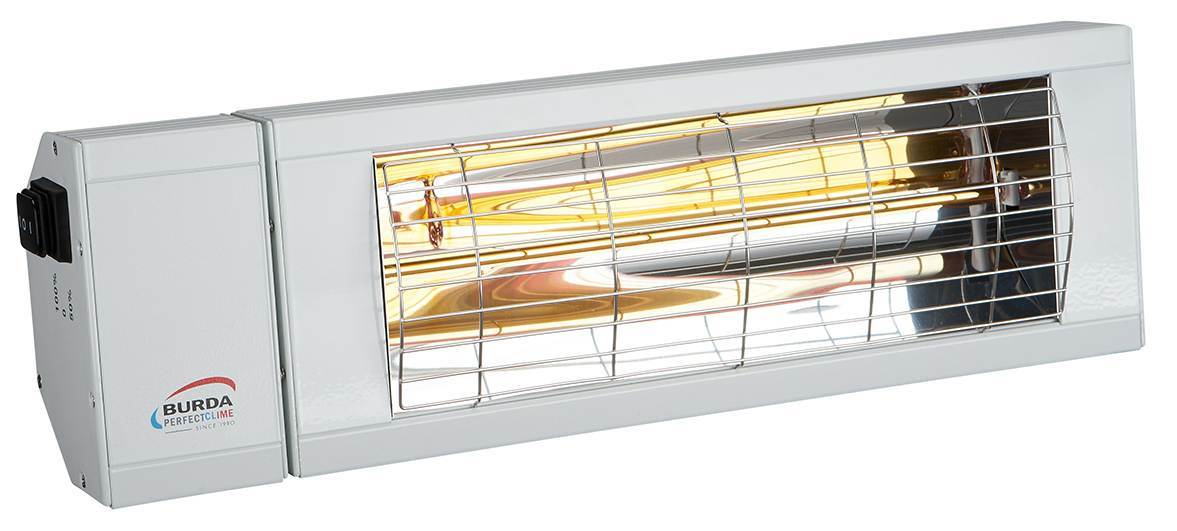

SMART infrared heater with switch 0 / 50% / 100%! The compact SMART S IP24 in white, silver or black
offers energy saving heating protected outdoor areas

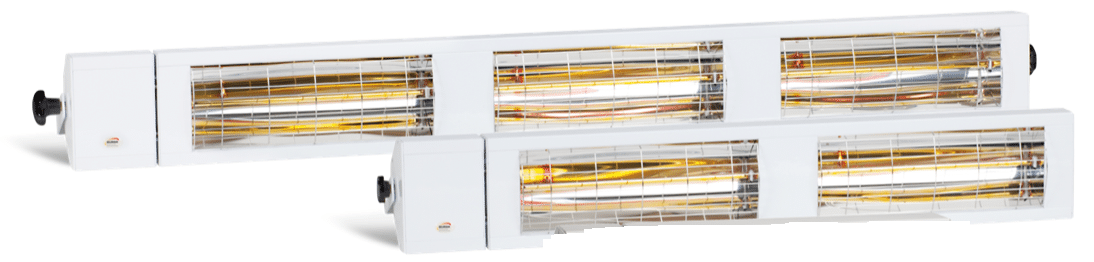

The powerful, waterproof and robust double or triple infrared heaters are particularly suitable for larger outdoor areas and provide reliable instant heat in all protected areas.
SMART TOWER with two heating tubes offers excellent mobile heat output and diverse possibilities for use in protected outdoor areas. Combined with the thermal comfort of an integrated dimmer for four-level heat regulation and a space-saving vertical design, the SMART TOWER sets new standards in functionality and design. Also available with BLUETOOTH.
Protection
IP24, splash-guardUse
Protected outdoor areasPerformance
1500 / 2000 watt
–Color
Silver, white or blackWeight
2,5 kgDimensions
48 x 14,5 x 9,5 cm (WxHxD)
–Assembly
Wall and ceiling, FACE DOWNConnection
1/N/PE ~ 230 V 50 Hz, schuko plug
–PLEASE NOTE
Up from 2kW we recommend to use 16A slow blow fuses (C16)!Guarantee
2 years private, 12 months business, 6 months industry.- WEEE-Reg.-Nr.:
DE50492100
Protection
IP24, splash-guardUse
Protected outdoor areasPerformance
1500 / 2000 watt–
–Color
Silver, white or blackWeight
2,5 kgDimensions
48 x 14,5 x 9,5 cm (WxHxD)
–Assembly
Wall and ceiling, FACE DOWNConnection
1/N/PE ~ 230 V 50 Hz, schuko plug
–PLEASE NOTE
Up from 2kW we recommend to use 16A slow blow fuses (C16)!Guarantee
2 years private, 12 months business, 6 months industry.- WEEE-Reg.-Nr.:
DE50492100
Protection
IP24, splash-guardUse
Protected outdoor areasPerformance
2 x 1500/2000 watt (double heater), 3 x 2000 watt (triple heater)Color
WhiteWeight
4,0 / 6,0 kgDimensions
89/129 x 14,5 x 9,5 cm (WxHxD) double/tripleAssembly
Wall and ceiling, FACE DOWNConnection
1/N/PE ~ 230 V 50 Hz, schuko plug, 2/3/N/PE ~ 400 (3N) V 50 Hz wire-end-sleevesPLEASE NOTE
Up from 2kW we recommend to use 16A slow blow fuses (C16)!Guarantee
2 years private, 12 months business, 6 months industry.- WEEE-Reg.-Nr.:
DE50492100
Protection
IP24, splash-guardUse
Protected outdoor areasPerformance
2 x 1500 watt
–Color
Silver, white, black or redWeight
7,3 kgDimensions
48 x 14,5 x 9,5 cm (WxHxD)
–Assembly
Standing heater deviceConnection
1/N/PE ~ 230 V 50 Hz, schuko plug
–PLEASE NOTE
Up from 2kW we recommend to use 16A slow blow fuses (C16)!Guarantee
2 years private, 12 months business, 6 months industry.- WEEE-Reg.-Nr.:
DE50492100
